# Installation within a Docker container
{% tabs %}
{% tab title="Docker" %}
#### Deployment
1. To install the **GitProtect** **worker** within a **Docker** container, use the images available on **Docker Hub** (or download the image from the [**Xopero** website](https://xopero.com/download/xopero_one/latest/client-image.tar)):
```docker
docker pull xopero/gitprotect-agent:latest
```
2. Create a host directory for the **GitProtect Management Service** container databases (which are located at `/app/Xopero` inside the container) to store databases outside the container:
```docker
mkdir -p /opt/gitprotect-agent/data
```
3. Run the container with the correct volume mounting and environment variables using the following command:
```docker
docker run -v /host/path:/container/path -e ENV_VAR=value image_name
```
```docker
docker run -d \
--name \
-e ManagementServiceUrl="" \
-e XoperoOverriddenHostName="" \
-v /opt/gitprotect-agent/data:/app/Xopero \
--restart unless-stopped \
xopero/gitprotect-agent:latest
```
{% code title="Example" overflow="wrap" %}
```docker
docker run -d \
--name xopero-worker\
-e ManagementServiceUrl="https://192.168.1.10:28555" \
-e XoperoOverriddenHostName="Docker_agent" \
-v /opt/gitprotect-agent/data:/app/Xopero \
--restart unless-stopped \
xopero/gitprotect-agent:latest
```
{% endcode %}
4. Check if the container works correctly by using the following command:
```docker
docker ps
```
5. Once all the above steps are completed, the **worker** will report to the **Management Service** panel for activation.
{% endtab %}
{% tab title="QNAP NAS (CS > 3.0)" %}
#### Prerequisites
**QNAP** with:
* x86 or x64 CPU (**ARM is not supported**)
* minimum 2GB RAM
* **Container Station** app from **AppCenter**
***
#### Environment setup
1. Download the **Container Station** app from the **AppCenter**.

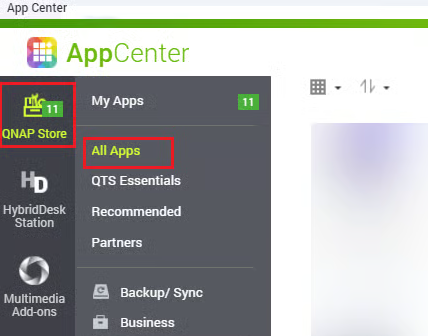

2. Login to your **QNAP** web panel and open the **AppCenter** application. In **QNAP Store**, select **All Apps** and search for the **Container Station**.
3. Download and open the application. Select the path that will be used as a directory for your **Docker** container data, and click **Start Now** to proceed.
***
#### Deployment
1. Open the **Container Station** application, select the **Containers** tab, and click the **Create** button.

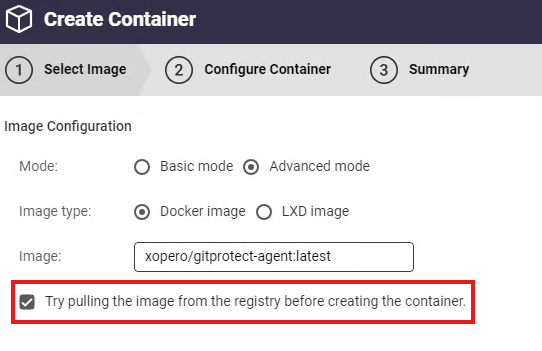

2. In **Image Configuration** choose the **Advanced mode** option. In the image type, select **Docker image**, and in the **Image** field, paste the following command:
```docker
xopero/gitprotect-agent:latest
```
3. Ensure the **Try pulling image from the registry before creating the container** option is checked, and hit **Next**.

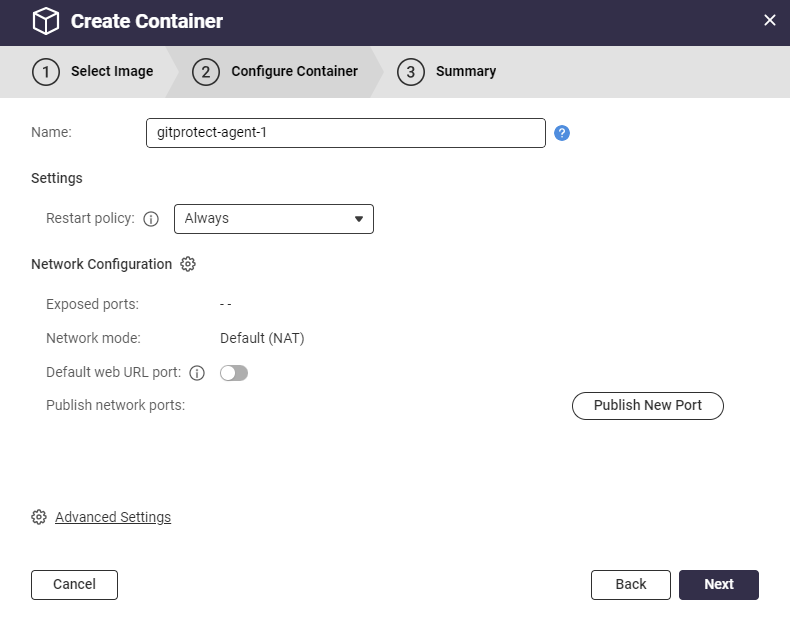

4. Within the **Configure Container** tab, the form contains several fields, with the most crucial being:
> **Name** — here you can set a custom name for the container
>
> **Restart policy** — defines if the container will star automatically in case of, for example, **QNAP** restart
5. In the **Configure Container** tab, navigate to ⚙️**Advanced Settings**.
6. Go to the **Environments** section and click **Add New Variable** to add new environment variables with the following values:
{% code title="ASPNETCORE\_URLS" overflow="wrap" %}
```docker
http://+:80
```
{% endcode %}
{% code title="DOTNET\_RUNNING\_IN\_CONTAINER" overflow="wrap" %}
```docker
true
```
{% endcode %}
{% code title="ManagementServiceUrl" overflow="wrap" %}
```docker
GitProtect Management Service address
```
{% endcode %}
{% code title="XoperoOverriddenHostName" %}
```docker
your custom QNAP container name
```
{% endcode %}
{% hint style="warning" %}
Replace `GitProtect Management Service address` with your **GitProtect Management Service** address**\***.
{% endhint %}
**‼️\*ManagementServiceUrl** – your **GitProtect Management Service** (address in one of the following formats (depending on the deployment model):
> a. `http://ipaddress:port`, i.e., `http://192.168.0.1:28555`
>
> b. `https://XMSID.ads.xopero.com`, i.e., `https://a00b0dc0-0116-0000-0000-d0000028960e.ads.xopero.com`

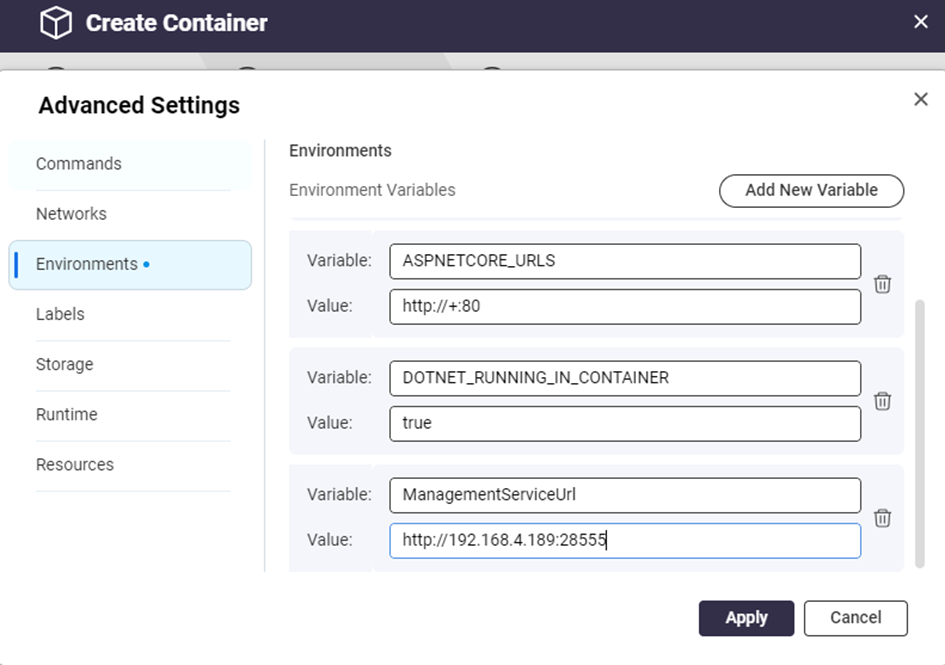

Example of correctly filled environments variables.
7. Click **Apply** to save your changes.

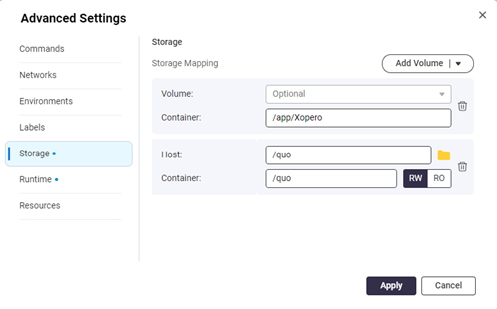

8. Navigate to **Storage** tab — here you can mount your **QNAP** volumes to the **GitProtect** **worker Docker** container.
{% hint style="success" %}
You can mount multiple directories to the container using **Add Volume** button and repeating the operation.
{% endhint %}
{% hint style="info" %}

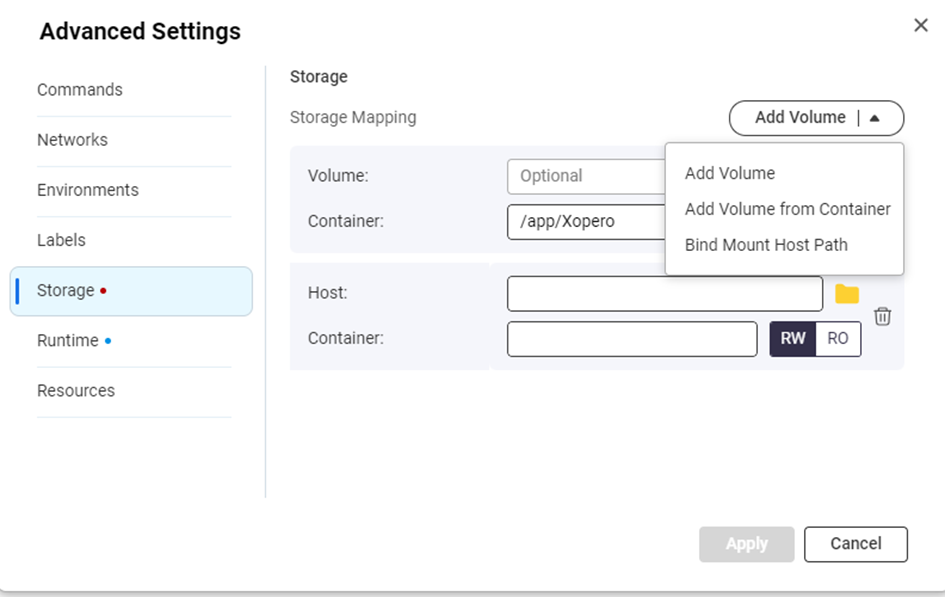

To back up data from your **QNAP** device, choose **Bind Mount Host Path** under **Add Volume** drop-down menu — it lets you specify which data the **GitProtect** container can access. Select a directory from the host and enter the path visible inside the container in the **Container** field.
{% endhint %}

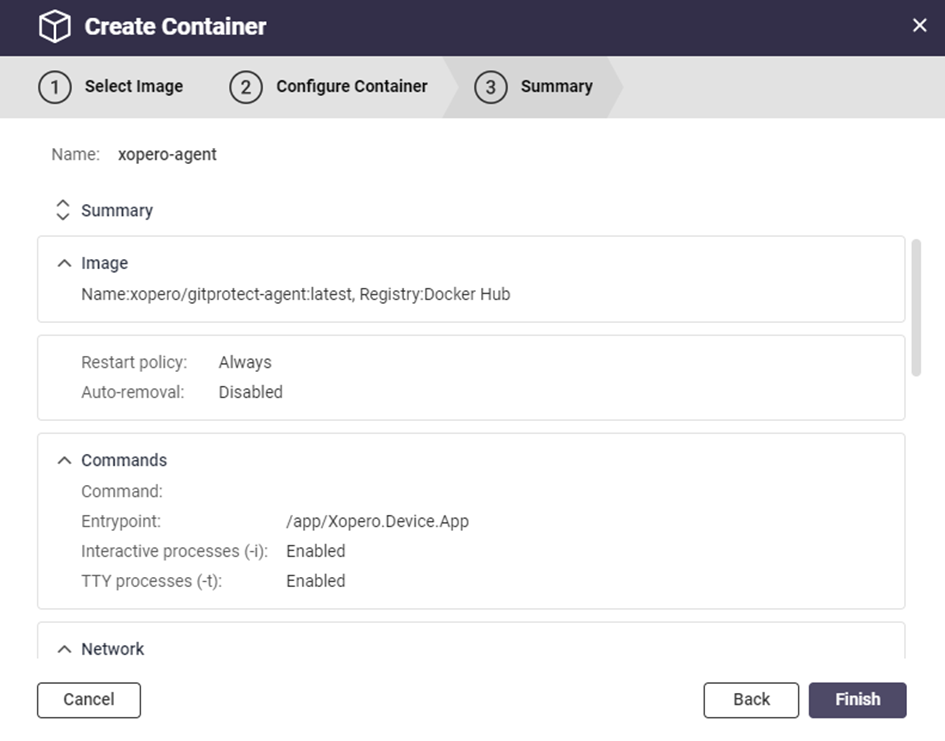

9. Next, double-check and confirm your settings, then click **Finish** to create the container.

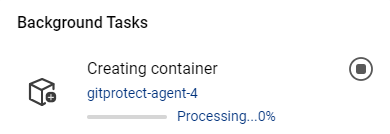

10. **Container Station** will download the latest **GitProtect** image and create the container based on that image.

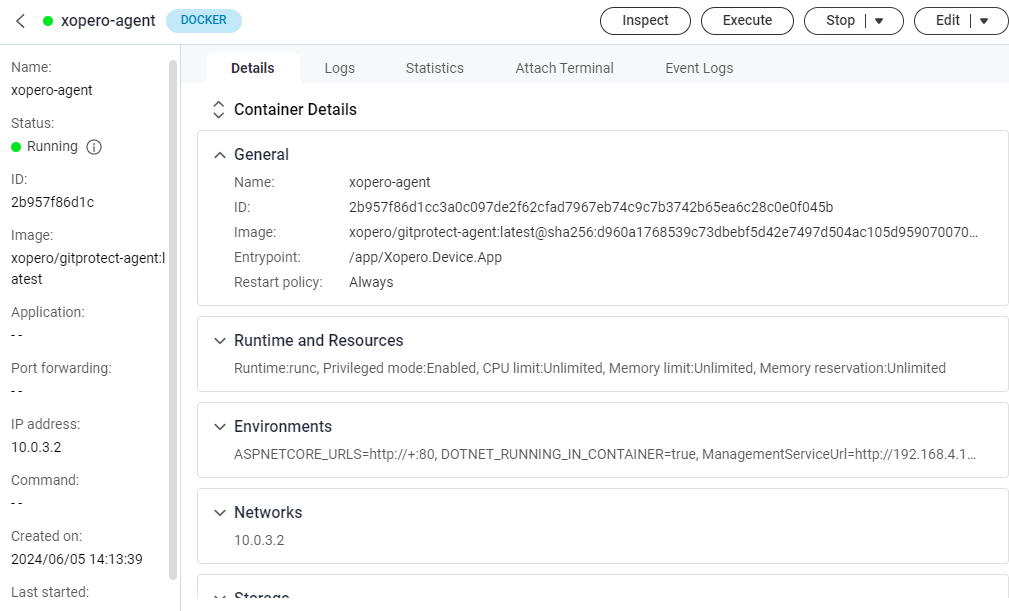

11. Once the container creation process is completed, your new container will be visible under **Container** tab in **Container Station**.
12. You can now connect to your **GitProtect Management Service** admin panel to activate the **worker**.
{% endtab %}
{% tab title="QNAP NAS (CS < 3.0)" %}
#### Prerequisites
**QNAP** with:
* x86 or x64 CPU (**ARM is not supported**)
* minimum 2GB RAM
* **Container Station** app from **AppCenter**
***
#### Environment setup
1. Download the **Container Station** app from the **AppCenter**.
2. Login to your **QNAP** web panel and open the **AppCenter** application. In **QNAP Store**, select **All Apps** and search for the **Container Station**.
3. Download and open the application. Select the path that will be used as a directory for your **Docker** container data, and click **Start Now** to proceed.
4. Once done, download the **GitProtect** **worker Docker** image, which is available [on our official server](https://xopero.com/download/xopero_one/latest/client-image.tar).
***
#### Deployment
1. Open the **Container Station** application and navigate the **Import** tab.
2. Click the ➕**Import** button to upload the previously downloaded **Docker** image file.
3. In **Create Import Task** window, select the source type and file path of the **GitProtect** worker**Docker** image and hit **Next** to continue.
{% hint style="info" %}
Selecting a file from a local source enables you to choose files stored on your device. Alternatively, you can use the **NAS** option to access files directly from **QNAP**.
{% endhint %}
4. Within the **Create Container** tab, the form contains several fields, with the most crucial being:
> **Name** — here you can set a custom name for the container
>
> **Auto start** — defines if the container will star automatically in case of, for example, **QNAP** restart
>
> **CPU Limit** — allows you to specify the percentage of CPU usage allocated for the container
>
> **Memory Limit** — RAM limit for the container

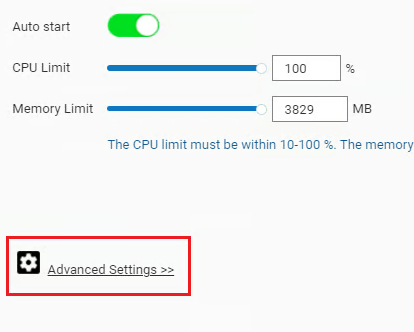

5. Click the ⚙️**Advanced Settings >>** button and navigate to the **Environment** section.
6. To add a new environment variable, click the **Add** button, name it **ManagementServiceUrl**, and set its value to your **GitProtect Management Service** address**\***.
**‼️\*ManagementServiceUrl** – your **GitProtect Management Service** address in one of the following formats (depending on the deployment model):
> a. `http://ipaddress:port`, i.e., `http://192.168.0.1:28555`
>
> b. `https://XMSID.ads.xopero.com`, i.e., `https://a00b0dc0-0116-0000-0000-d0000028960e.ads.xopero.com`
7. Go to the **Shared Folders** section — here you can mount your **QNAP** volumes to the **GitProtect** **worker** **Docker** container.
{% hint style="success" %}
You can mount multiple directories to the container using **Add** button in **Volume from host** section and repeating the operation.
{% endhint %}
8. To back up data from your **QNAP** device, choose **Add** under **Volume from host** section — it lets you specify which data the **GitProtect** container can access. Select a directory from the host in **Volume from host** field and enter the path visible inside the container in the **Mount Point** field.
{% hint style="info" %}
For instance, if you need to back up a directory named **Backup** inside a public shared folder, set the **Volume from the host** field to `/Public/Backup`. The **Mount Point** can be different, i.e., `/Backup`.
{% endhint %}
9. Once you're done with the above steps, click **Create** to continue.
10. In the **Summary** window double-check your settings, then click **OK** to finish the configuration.
10. You can now connect to your **GitProtect Management Service** admin panel to activate the agent.
{% endtab %}
{% tab title="Synology NAS" %}
#### Deployment
{% hint style="warning" %}
To deploy the **GitProtect** **worker** on a **Synology** device using **Docker**, use the **Container Manager** application. If it's not installed, download it from the **Package Center**.
{% endhint %}

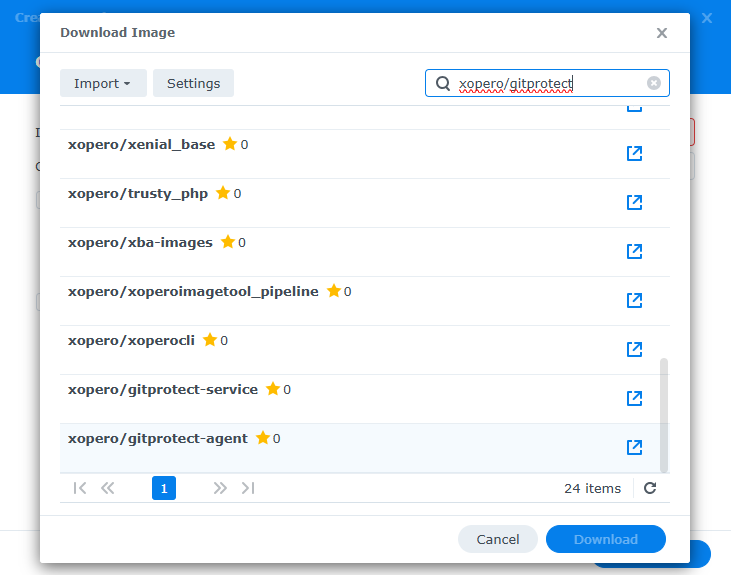

1. Navigate to the **Container** tab and click the **Create** button. Expand the **Image** section and click **Add image**, then search for `xopero/gitprotect-agent` image.
2. Select the image, click **Download**, and choose the version tagged as latest. Click **Select** to confirm.
3. Once the image is downloaded, select it from the **Image** field drop-down menu.

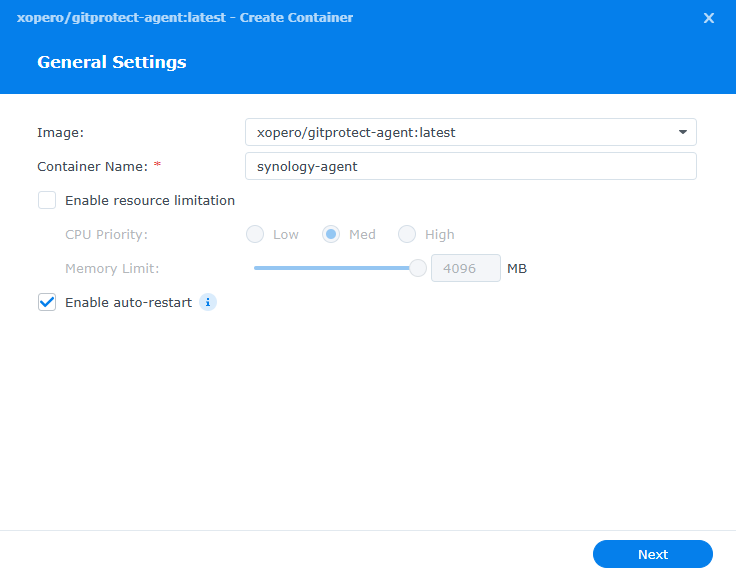

4. Next, define a custom name for the container. Additionally, configure container resource limits if needed.
5. Check the **Enable auto-restart** option to ensure the container automatically restarts when the device reboots, then click **Next** to proceed.

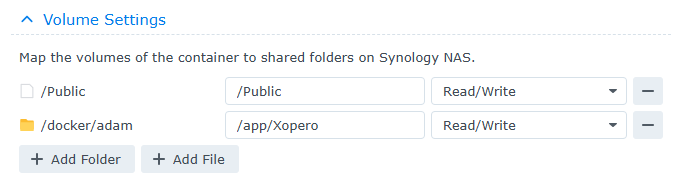

6. In the **Volume Settings** section, click the ➕**Add Folder** button, and select directories that require protection. The container needs to have external directories mounted to access them while performing backups.
{% hint style="info" %}
To protect data stored in the **Public** directory, select this folder and specify the same path to ensure consistency between the host and the container's file systems.
{% endhint %}
{% hint style="success" %}
You can mount multiple directories to the container by clicking ➕ **Add Folder** and repeating the operation.
{% endhint %}
7. Additionally, to ensure data persistence during container updates or maintenance operations, mount **worker** databases to an external directory. These databases are located in `/app/Xopero` and should be mapped to a designated location outside the container to avoid data loss or inconsistency.

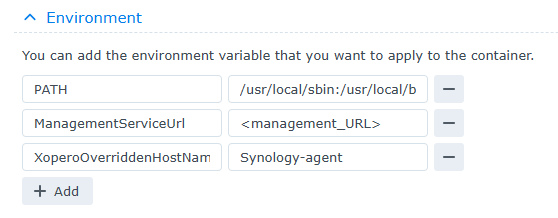

8. Next, in the **Environment** section, define the required variables:
> **ManagementServiceUrl** — your **GitProtect Management Service** address in one of the following formats (depending on the deployment model):
>
> a. `http://ipaddress:port`, i.e., `http://192.168.0.1:28555`
>
> b. `https://XMSID.ads.xopero.com`, i.e., `https://a00b0dc0-0116-0000-0000-d0000028960e.ads.xopero.com`
>
> **XoperoOverriddenHostName** — specify worker's name to facilitate identification

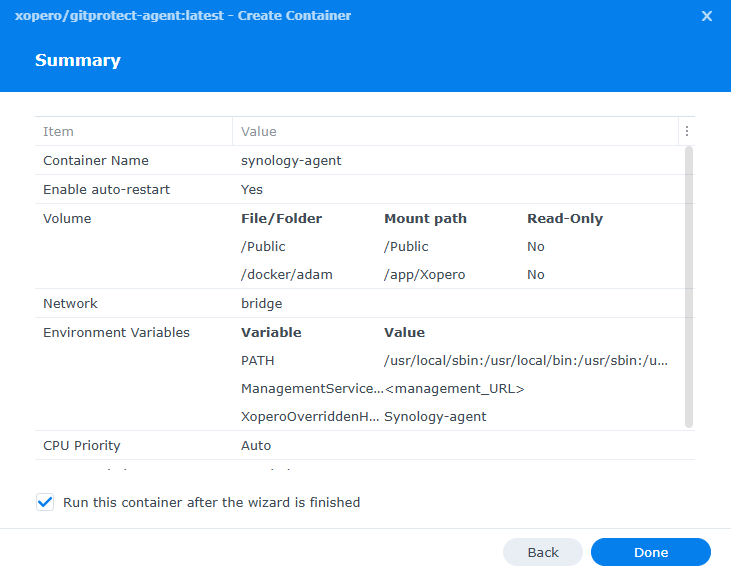

9. Click **Next** to confirm the configuration. In **Summary** window, double-check your settings and if they're all correct, hit **Done** to finalize the process.
{% endtab %}
{% endtabs %}
