# SMB share

{% stepper %}
{% step %}
Login to your **GitProtect Management Service** admin panel, open the **Storages** tab and click the **(+) Add storage** button.
{% endstep %}

{% step %}
In **Add storage** form, define the storage name.

<figure><img src="https://696332517-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FtsE6XtJyUIEKVdSxPlS3%2Fuploads%2Fgit-blob-f5c07bf0bf933b259d6ec3f086b164405e9b5923%2F1.png?alt=media" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}
If needed, add an optional description.

<figure><img src="https://696332517-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FtsE6XtJyUIEKVdSxPlS3%2Fuploads%2Fgit-blob-0a86ce1c41f9771ebf02f9996bf5870ff7c1fce4%2F2.png?alt=media" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}
Expand the **Storage type** list and select **Network location (SMB share)**.

<figure><img src="https://696332517-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FtsE6XtJyUIEKVdSxPlS3%2Fuploads%2Fgit-blob-a4f8176e25039cb5d0602c5898d67089f077e622%2F3.png?alt=media" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}
Fill in the **Username** and select (or add) a password, ensuring they match the domain credentials tied to the network location.

{% hint style="info" %}
Learn more about using **Password Manager** [here](https://helpcenter.gitprotect.io/management/password-manager).
{% endhint %}

<figure><img src="https://696332517-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FtsE6XtJyUIEKVdSxPlS3%2Fuploads%2Fgit-blob-47b11d0fc9257abb2aaecfb38dd9095f0f48f758%2F4.png?alt=media" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}
Ensure the browsing device can detect the storage. Use the **Change** button to select a **Browsing machine** from the devices assigned to **GitProtect**, which will connect the share to the system.

<figure><img src="https://696332517-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FtsE6XtJyUIEKVdSxPlS3%2Fuploads%2Fgit-blob-8f74efe564e481608e61bd7e1cc39b7efa2a1b1f%2F5.png?alt=media" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}
Enter the path or server address containing the share in the **Path to the SMB share** field.

<figure><img src="https://696332517-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FtsE6XtJyUIEKVdSxPlS3%2Fuploads%2Fgit-blob-5315d20b0e58d2db7666e6ac871fc7b756e0ef6e%2F6.png?alt=media" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}
When using the second option (server address) you can browse the server shares — click on the **Folders** icon to see your available server shares options.

<figure><img src="https://696332517-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FtsE6XtJyUIEKVdSxPlS3%2Fuploads%2Fgit-blob-21f860cb684fa6d18def77b966ebff9baa1d1abb%2F7.png?alt=media" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

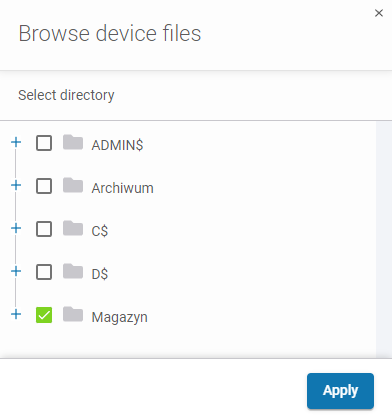

Select the share you want to store your data in and click **Apply**.

<figure><img src="https://696332517-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FtsE6XtJyUIEKVdSxPlS3%2Fuploads%2Fgit-blob-27bab509c3f1251ad69c38d950b963838d67790b%2F8.png?alt=media" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}
To finish the storage configuration, click **Save**.
{% endstep %}
{% endstepper %}
